11. Density Estimation

Chap. 9 : Regression

Chap. 10 : Dimensionality reduction.



---

Chap 11 : Density Estimation.

1. Expectation Maximization Algorithm

2. Latent Variable Perspective.

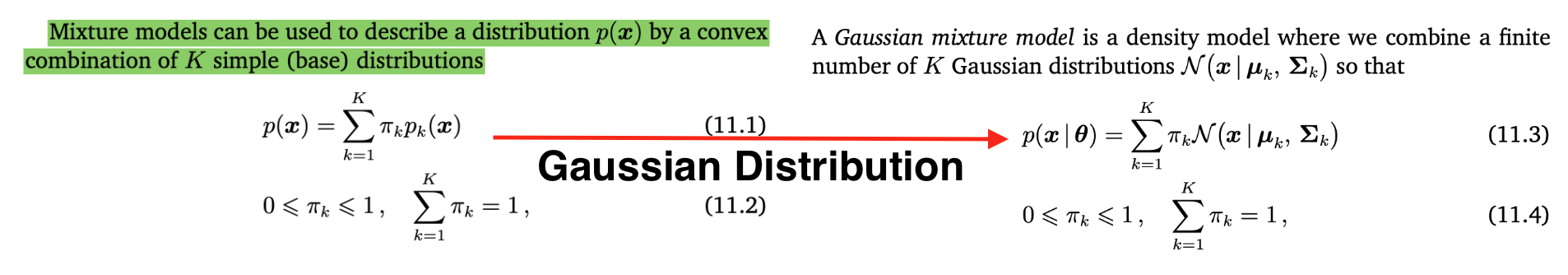

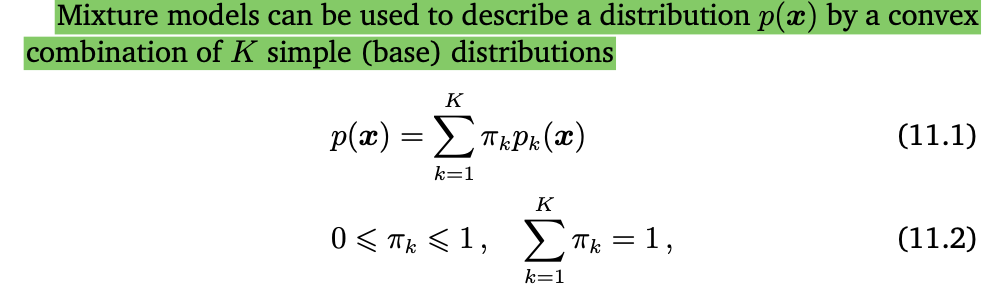

of density estimation with Mixture Models



When? Huge, Representing characteristics  ( Gaussian or Beta distribution )







p_{k} : For example - Gaussians, Bernoullis, or Gammas

pi_{k} : Mixture weight.

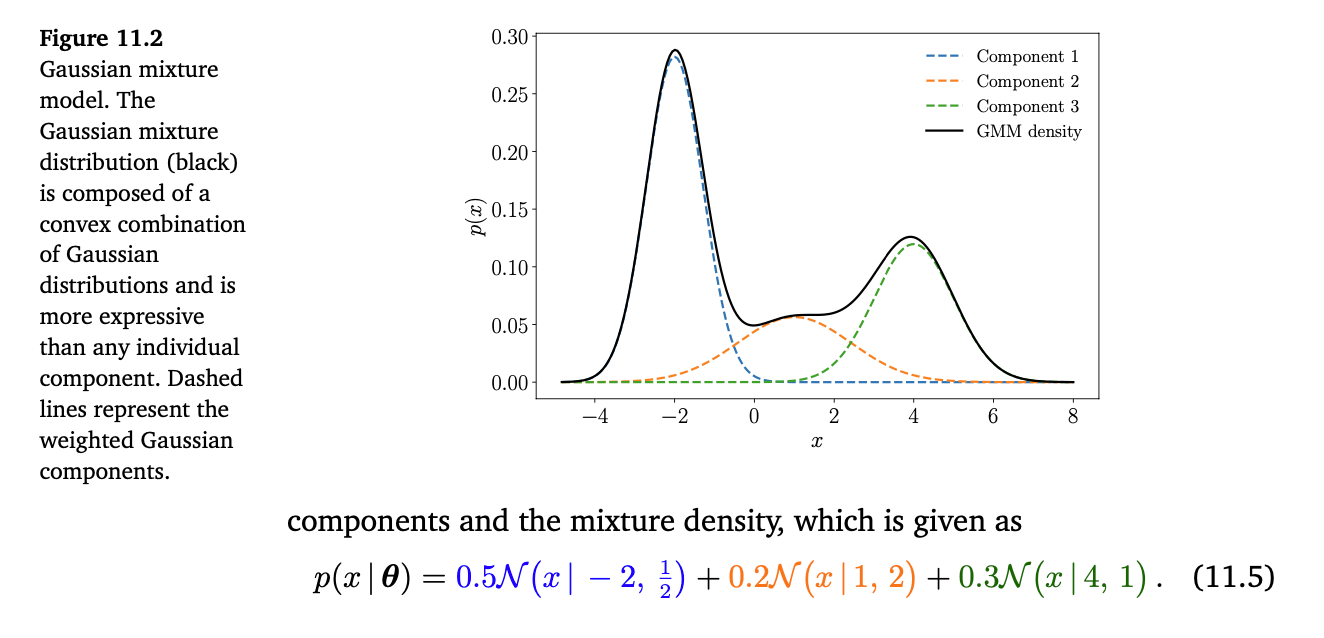

11.1 Gaussian Mixture Model



11.2 Parameter Learning via Maximum Likelihood





In the following, we detail how to obtain a maximum likelihood estimate θ_{M/L of the model parameters θ.

and then -> gradient descent -> set it to "0"  -> solve θ ( XX )

we can exploit an iterative scheme to find good model parameter θ_{ML}

Iterative scheme will turn out to be the EM algorithm for GMMs.

The key idea is to update one model parameter at a time [ while keeping the others fixed ]







11.2.1. Responsibilities



mixture components have a high responsibility for a data point when the data point could be a plausible sample from that mixture component



Responsibility = sum -> 1 with r_{nk} >= 0





11.2.2 Updating the Means

update of the mean parameter of mixture component in a GMM. The mean μ is being pulled toward individual data points with the weights given by the corresponding responsibilities.



11.2.3 Updating the Covariances

Effect of updating the variances in a GMM. (a) GMM before updating the variances; (b) GMM after updating the variances while retaining the means and mixture weights.



11.2.4 Updating the Mixture Weights

Effect of updating the mixture weights in a GMM. (a) GMM before updating the mixture weights; (b) GMM after updating the mixture weights while retaining the means and variances. Note the different scales of the vertical axes.

변수를 선택해서 바꿔가며, 그것이 mixture된 분포를 어떻게 나눠주는지를 살펴본다.
